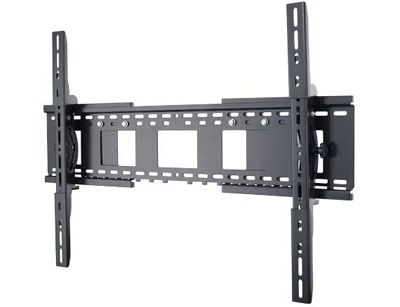

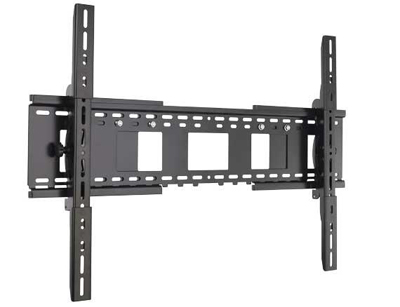

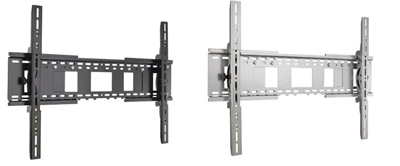

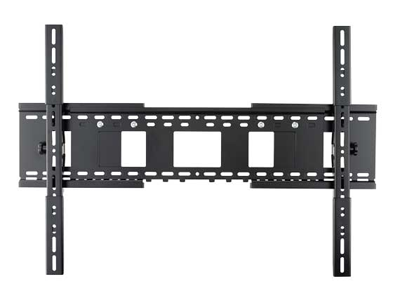

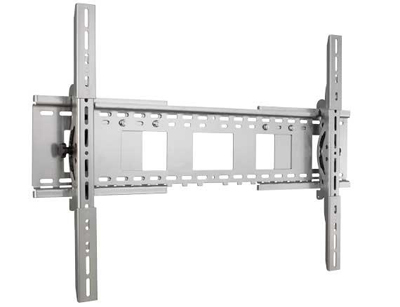

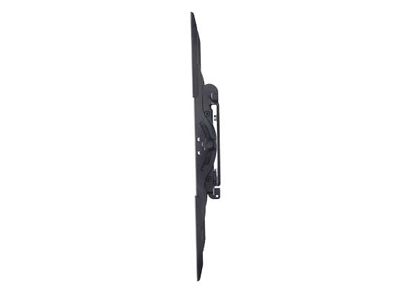

The VisionMount VMPL3 is the most versatile mount on the market. This dual-purpose tilting and low-profile wall mount fits flat-panel TVs from 27" – 84" and up to 280 lbs. Sanus Systems’ Virtual Axis™ tilting system provides easy adjustment of viewing angle with just the touch of a finger. Solid heavy-gauge steel construction offers a sleek, high-tech look while providing strength and durability. The expandable wall plate and TV brackets offer a custom fit and lateral shift ability to allow perfect TV placement, even with off-center wall studs. TV is positioned just 2.5" from the wall with tilting brackets or 1.25" from the wall with low-profile brackets for a clean, flush appearance. Universal mounting pattern fits virtually any 27" – 84" LCD and plasma TV up to 280 lbs.

Features:

• Includes BOTH tilting and low-profile brackets
• Mounts TV close to the wall for a flush appearance
• Virtual Axis™ technology offers effortless tilt motion without the use of tools
• Adjustable design expands and retracts to support most TV sizes
• Wall plate features back panel cutouts, allowing cables to be routed through opening and into wall or J-box for concealed wire management
• Triangular hole in wall plate can be placed over a nail to provide hands-free leveling of mount
• UL-listed for quality and safety assurance

Product Specifications
TV Diagonal Min/Max:	27.00" - 84.00" / 68.58cm - 213.36cm
Product Width:	27.00" / 68.58 cm
Product Height:	17.00" / 43.18 cm
Product Depth Min:	2.50" / 6.35 cm
Product Depth Max:	2.50" / 6.35 cm
Product Type Specifications
TV Size Range:	27.00" - 84.00" / 68.58cm - 213.36cm
Maximum TV Weight:	280.00 lb / 127.27 kg
Mounting Pattern:	Universal
Tilt:	6.00° / - 12.00°
