The VisionMount LRF118 is a full-motion wall mount for 30" – 50" flat-panel TVs. This mount is specifically engineered for the LR1A recessed in-wall box and allows a TV to rest nearly flush with the wall, hiding mounting hardware. Sanus Systems' Virtual Axis™ technology provides effortless tilting movement with the touch of a finger. Full motion allows tilt, swivel, pan, and extend motions up to 17” from the wall. Its extruded aluminum and solid heavy-gauge steel construction offers a sleek, high-tech look while providing strength and durability. Universal mounting pattern fits virtually any 30" – 50" LCD or plasma TV up to 130 lbs.

Features:

• Mount swivels from left to right for viewing from multiple angles
• Retracts to bring TV close to the wall for a flush appearance
• Virtual Axis™ technology offers effortless tilt motion without the use of tools
• Hinged arm extends TV off wall, providing easy access to cables
• Universal mounting brackets fit nearly all flat-panel TVs

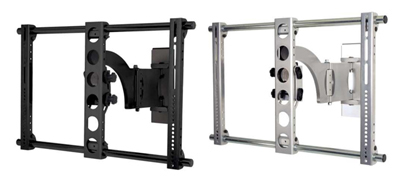

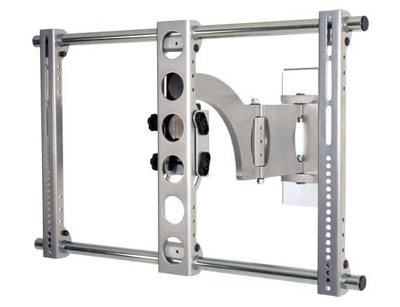

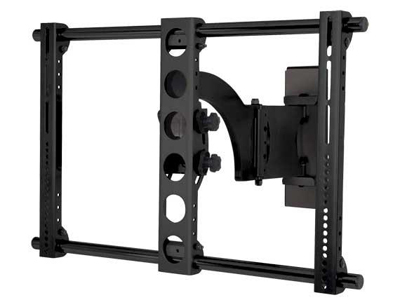

Available in: Black or Silver Finish

Product Specifications
TV Diagonal Min/Max:	30.00" - 50.00" / 76.2cm - 127cm
Product Width:	29.50" / 74.93 cm
Product Height:	18.50" / 46.99 cm
Product Depth Min:	1.50" / 3.81 cm
Product Depth Max:	17.00" / 43.18 cm
Product Type Specifications
TV Size Range:	30.00" - 50.00" / 76.2cm - 127cm
Maximum TV Weight:	130.00 lb / 59.09 kg
Mounting Pattern:	Universal
Tilt:	5.00° / - 15.00°
Swivel:	90.00° / - 90.00°
Pan:	90.00° / - 90.00°
Roll:	6.00° / - 6.00°
