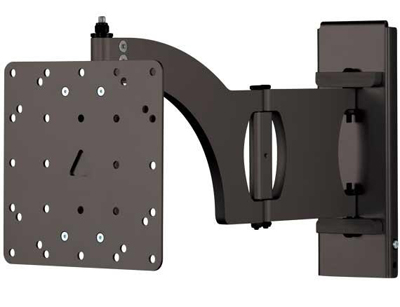

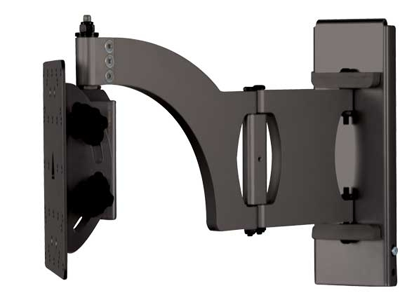

The VisionMount VM400 is a full-motion wall mount for 26" – 42" flat-panel TVs and can be used alone or with the LR1A recessed in-wall box. Sanus Systems’ Virtual Axis™ tilting system provides effortless tilt with the touch of a finger. Full motion allows swivel, pan and extend motions up to 20" from the wall for easy viewing from multiple angles. Mount can be rotated ±6º after installation to ensure TV is perfectly level. Die cast aluminum and heavy-gauge steel construction offers a sleek, high-tech look while providing strength and durability. Included adapter brackets fit TVs with VESA patterns up to 400 x 300.

Features:

• Powder-coated steel and aluminum construction provide a sleek, high-tech look
• Includes clips to secure loose wires for a clean, sleek look
• Included adapter brackets support TVs with VESA 400 x 300, 400 x 200, 300 x 300, 300 x 200 or 300 x 100 hole patterns
• Virtual Axis™ technology offers effortless tilt motion without the use of tools
• Features a hinged arm for added range of motion

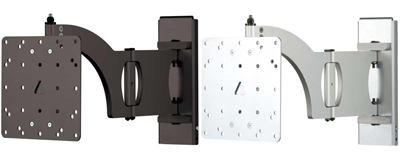

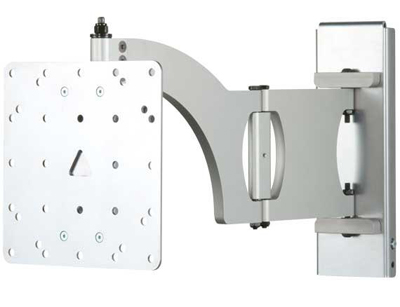

Available in: Black or Silver Finish

Product Specifications
TV Diagonal Min/Max:	26.00" - 42.00" / 66.04cm - 106.68cm
Product Width:	15.00" / 38.1 cm
Product Height:	12.50" / 31.75 cm
Product Depth Min:	3.50" / 8.89 cm
Product Depth Max:	20.00" / 50.8 cm
Product Type Specifications
TV Size Range:	26.00" - 42.00" / 66.04cm - 106.68cm
Maximum TV Weight:	100.00 lb / 45.45 kg
Mounting Pattern:	VESA 100 x 100 179 x 119 VESA 200 x 100 VESA 100 x 200 VESA 200 x 200 VESA 400 x 200 120 x 180 VESA 300 x 100 VESA 300 x 200 VESA 300 x 300 VESA 400 x 300
Tilt:	5.00° / - 15.00°
Swivel:	90.00° / - 90.00°
Pan:	90.00° / - 90.00°
Roll:	6.00° / - 6.00°
